Concentric Reducer Sch.160 ASTM A234 Gr. WPB ASME B 16.9

Product Categories

Hebei Qianding Pipe Fitting Manufacturing Co., Ltd.

Contact Now

Brand Name : QD

Model Number : pipe reducer

Certification : CE

Place of Origin : CHINA

MOQ : 50piece

Price : 0.8-1 usd/piece

Payment Terms : L/C, T/T

Supply Ability : 10000 piece/week

Delivery Time : 7 work days

Packaging Details : standard package

Material : Steel

Standard : ANSI,DIN,JIC/BSP/NPT/BSPT/SAE/Metric/ORFS

Color : Black

Application : Gas/oil/water

name : black painting standard 45d carbon steel pipe reducer

Contact Now

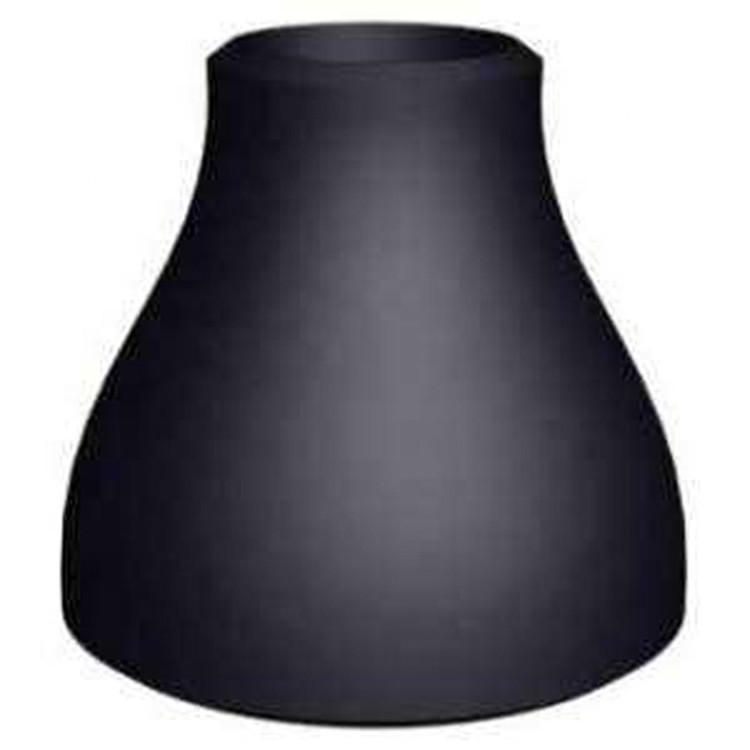

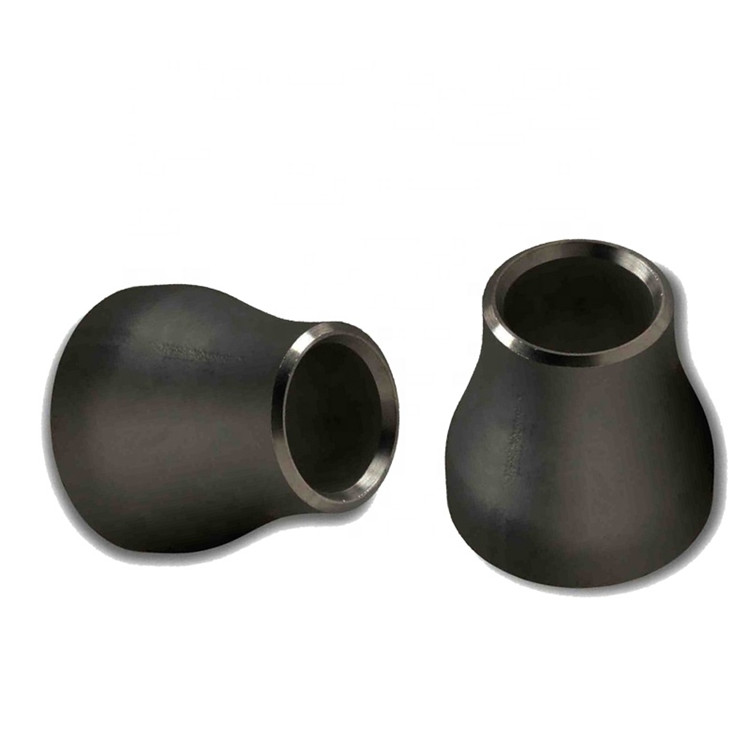

concentric reducer 6" x 3" (168.3x18.26-88.9x11.13) Sch.160 ASTM A234 Gr. WPB ASME B 16.9

Specifications:

Dimensional Tolerances of Carbon Steel Pipe Reducer

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter at Bevel (D)	+ 1.6 – 0.8	1.6	1.6	+ 2.4 – 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Overall Length (H)	2	2	2	2
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4 – 3.2	+ 6.4 – 4.8	+ 6.4 – 4.8	+ 6.4 – 4.8
Inside Diameter at End	3.2	4.8	+ 6.4 – 4.8	+ 6.4 – 4.8
Overall Length (H)	2	2	5	5
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Concentric Reducer Sch.160 ASTM A234 Gr. WPB ASME B 16.9

FAQ:

Q1: How to order?

1. To specity standard and the thickness.

2. To specity surface treatment.

3. To specity figure size and quantity.

Q2: After sales service?

Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.

Q3: Can I have a sample order for pipe fittings?

Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q4: Do you offer guarantee for the products?

Yes, we offer almost 20 years warranty to our products.
